Learning Objectives

• Link assets to product sheets
• Create associations using assets already present in the DAM
• Import new assets into the DAM and link them on the fly

Your product sheets can be illustrated with images, videos, or enriched with other types of assets. To do this, you need to link your product sheets to assets. There are several ways in Quable PIM to link your asset files to product sheets.

The link can be made from the asset sheet in the Links section, by importing a link file, via the API, or by using an automatic association rule.

The simplest way is to do it manually on a product sheet from the Assets tab. This is what we will cover here.

Link an asset to a product sheet, from the product sheet

The asset is already uploaded in the DAM

1. Go to the product sheet that should be linked to the asset

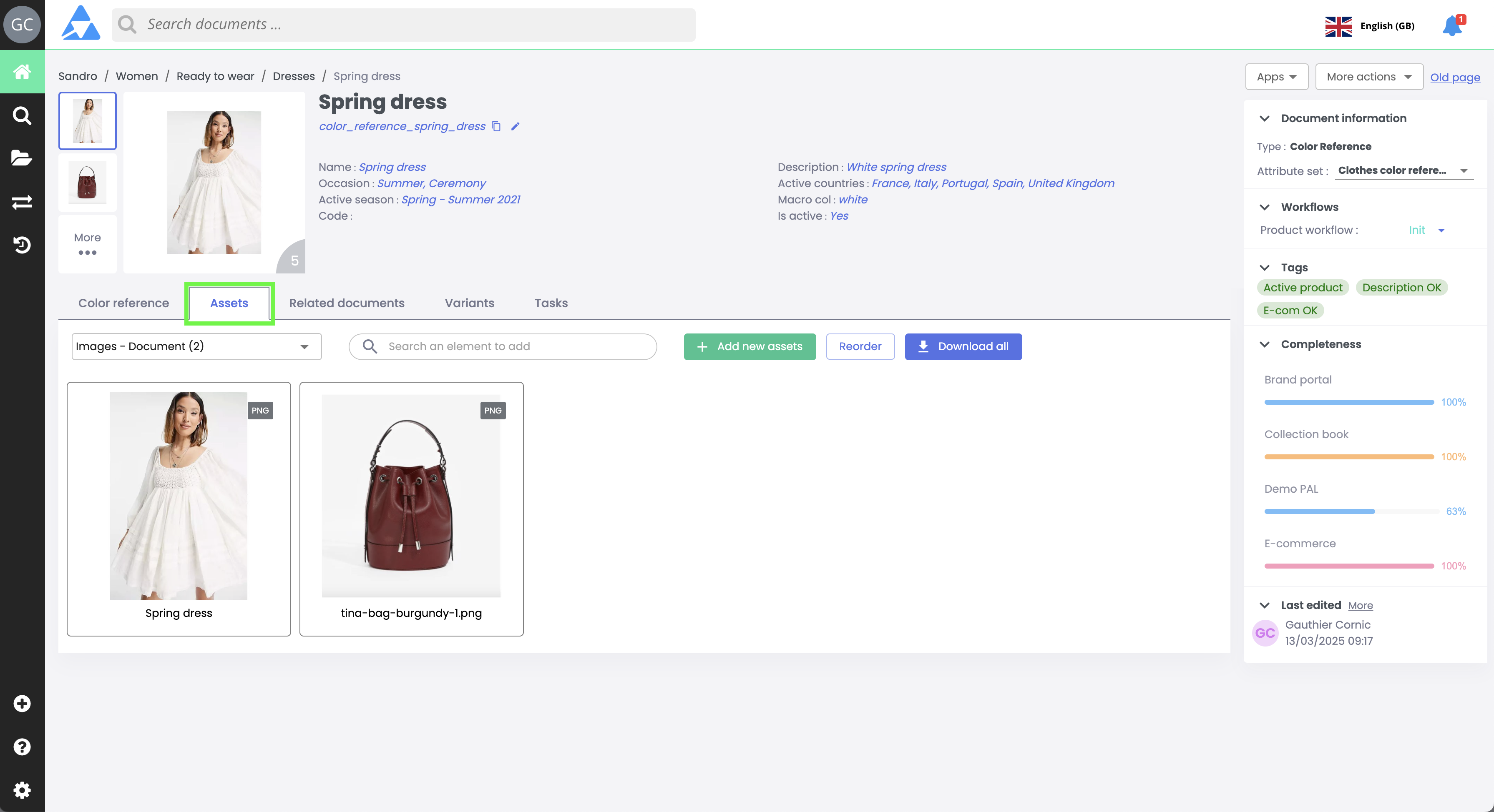

2. Select the Assets tab

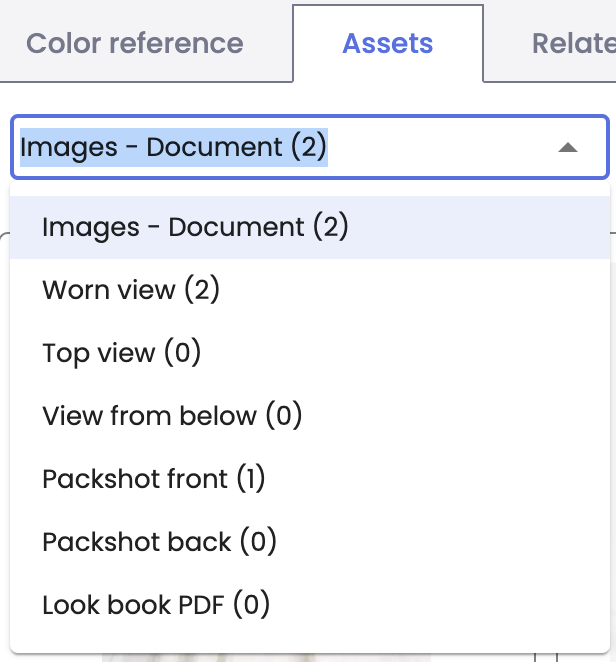

3. Identify the link through which the asset should be associated with the product sheet.
4. The asset is already in the DAM: type the name or code of the asset into the input bar, then select it from the dropdown menu.

👍

Tips

It can be useful, to make identifying assets easier, to open a new tab in your web browser and load the page of your DAM classification. This way, you will have immediate access to the name or code of the assets you want to link to the product sheet.

New asset to import into the DAM

If the asset is not yet present in the DAM, you can upload a new file while linking it to the product sheet.

1. From the product sheet, click on the Assets tab and identify the link through which the asset should be associated with the product sheet.

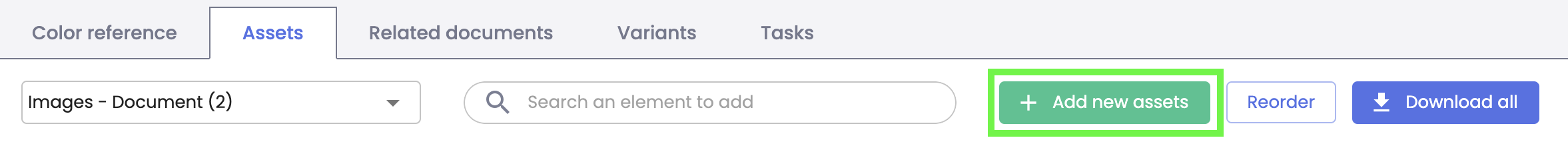

2. Click the Add new assets button and select the file from your workstation that you wish to link to this product sheet.

A Download window will open allowing you to confirm your upload by clicking the Start button. Multiple assets can be uploaded at once.

👍

Tips

The uploaded asset will be categorized under the default Assets node in your DAM. If you observe specific classification of asset in your DAM, it will be necessary to move the uploaded asset to the appropriate classification node. However, the link between the product sheet and the asset will always be effective.

Link an asset to a product sheet, from the asset sheet

The asset is already uploaded in the DAM

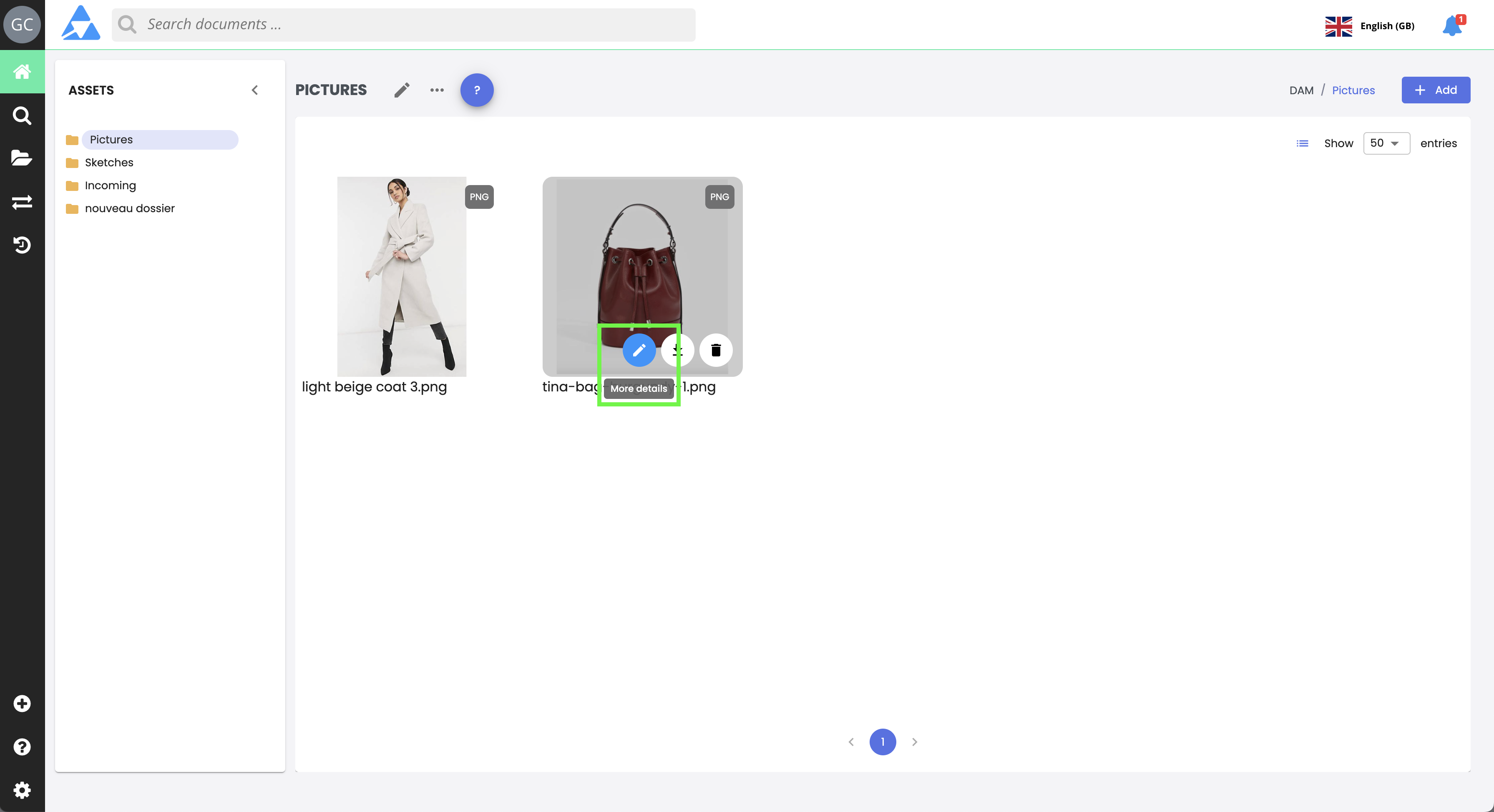

1. Go to the asset sheet that should be linked to the product,

2. Click on the link button,

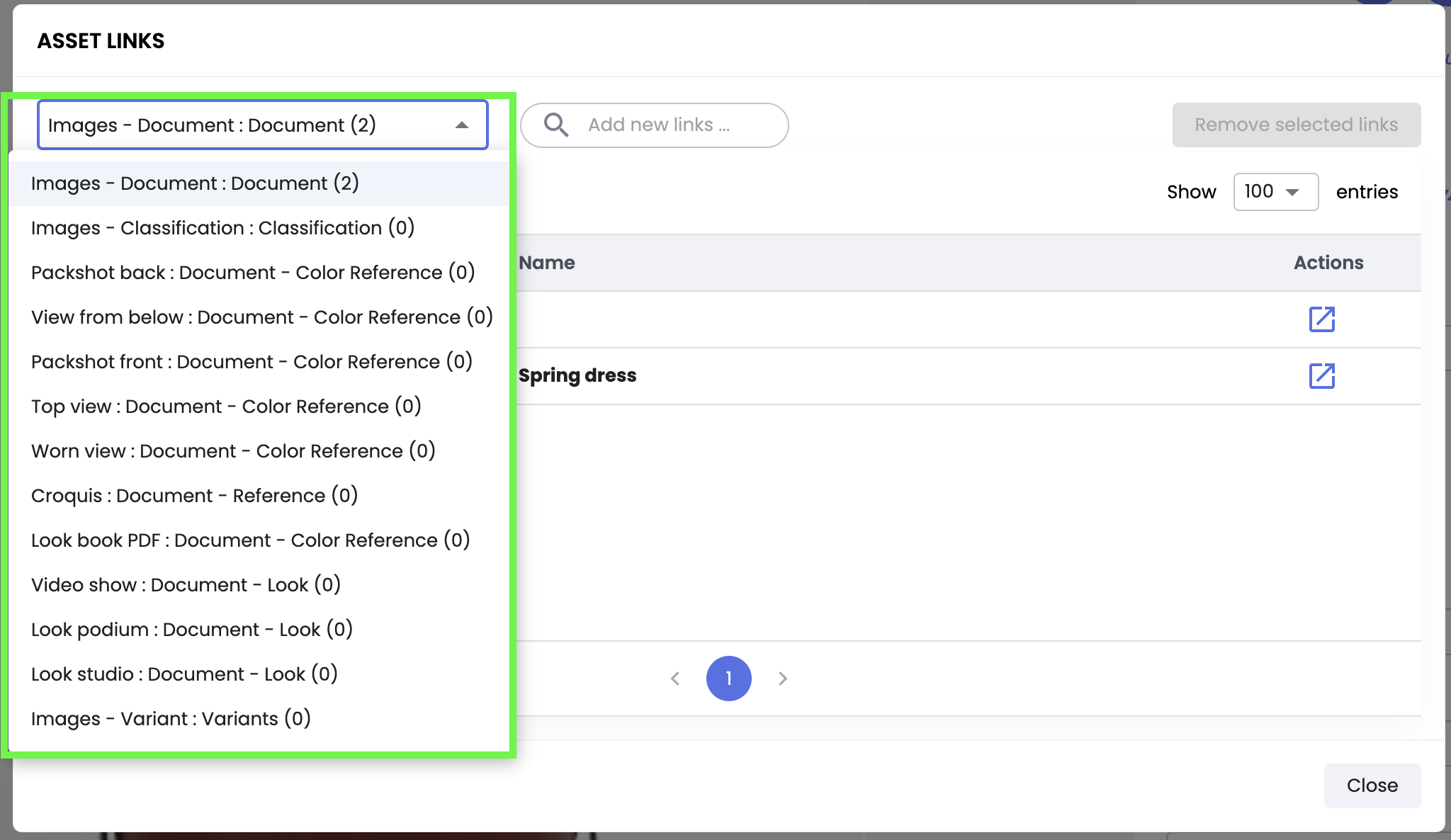

3. Identify the link through which the asset should be associated with the product sheet,

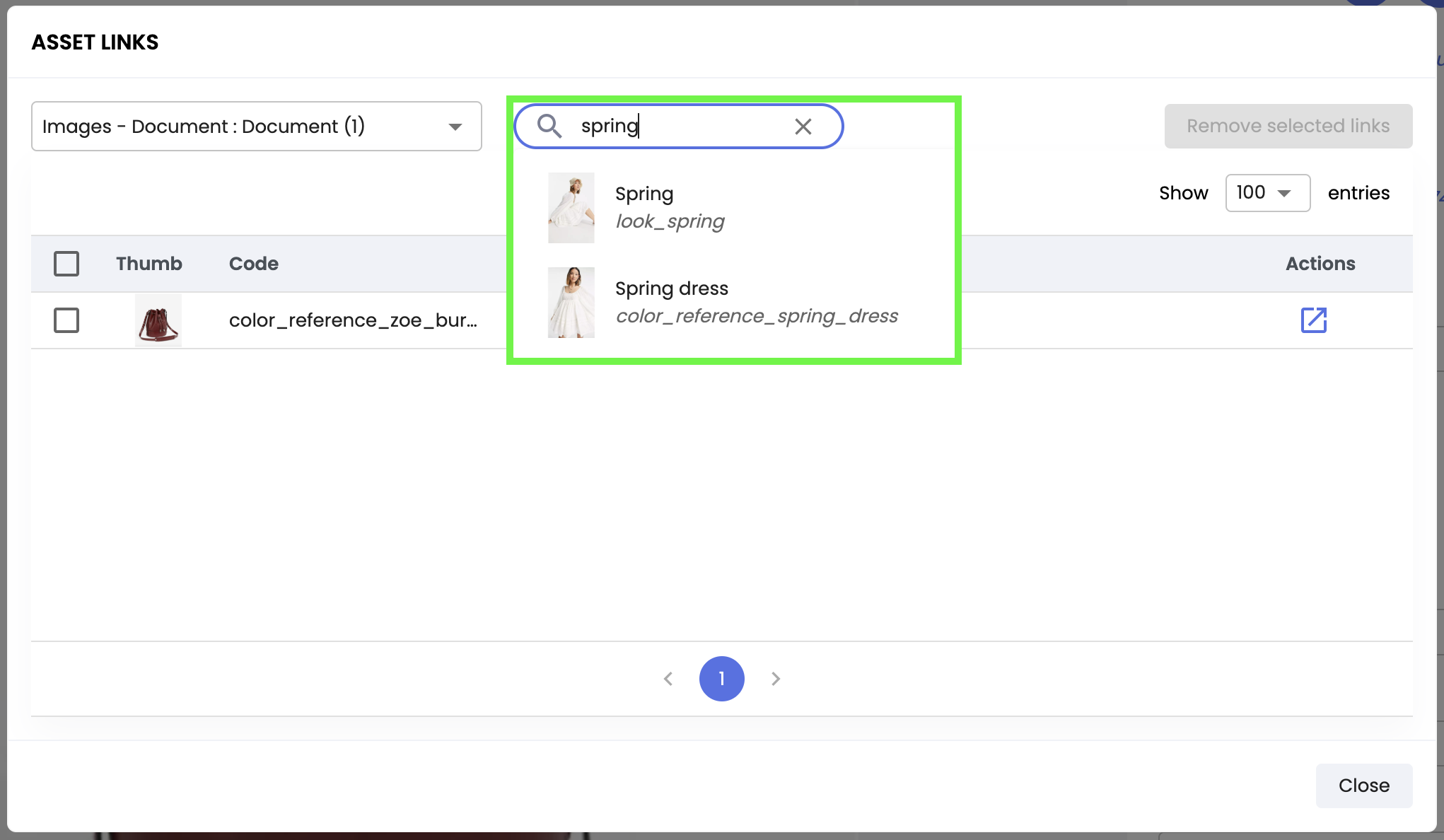

4. Search for the product you wish to link to the asset sheet: type the product name or code into the input bar, then select it from the dropdown menu.



👍

Tips

It can be useful, to make identifying products easier, to open a new tab in your web browser and load the page of your PIM classification. This way, you will have immediate access to the name or code of the product you want to associate with the asset sheet.

New asset to import into the DAM

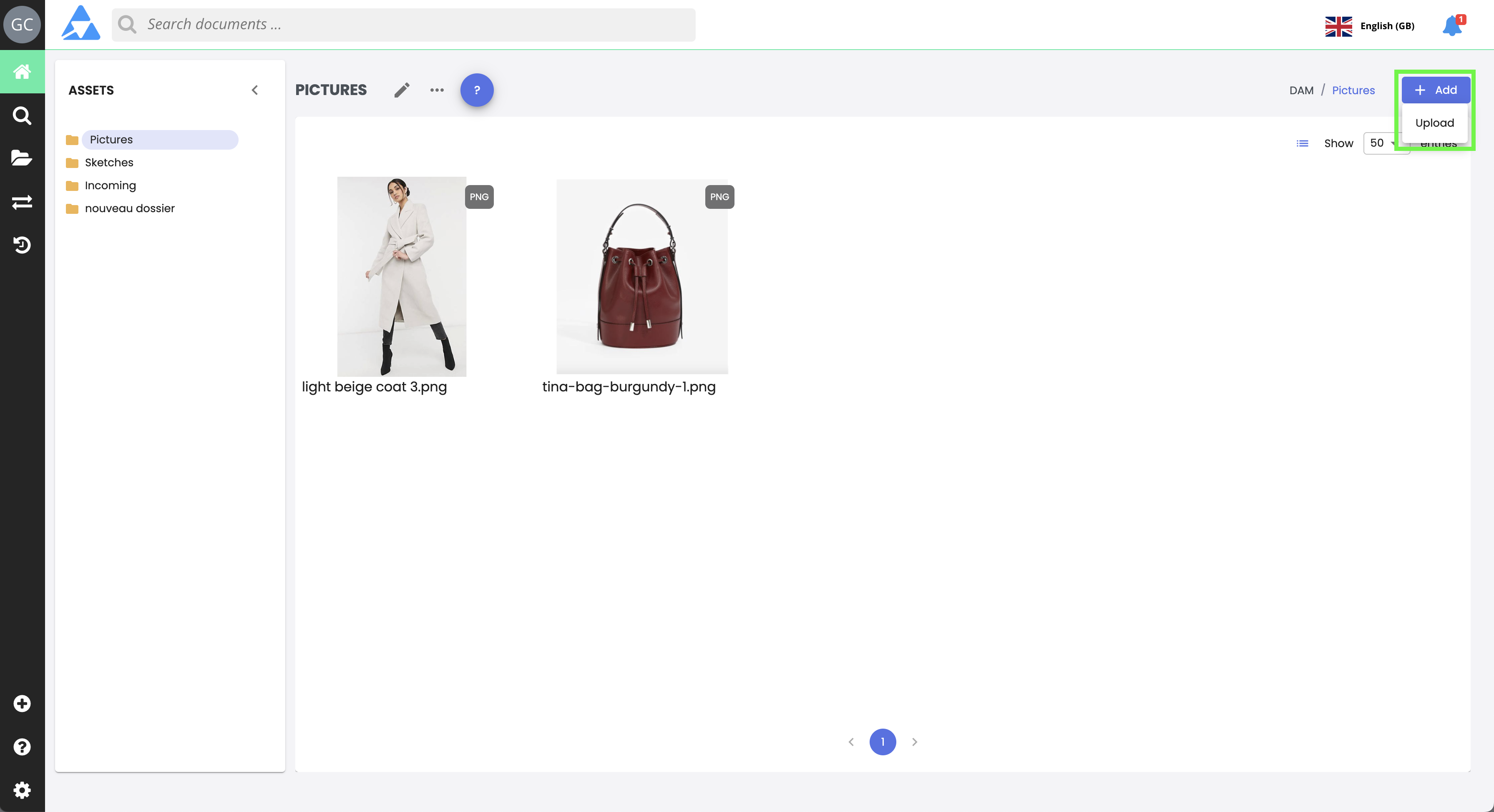

1. From the classification node where you want to import your new asset, click the "+ Add" button and then "Upload" to open the import window, select the file from your computer, then click "open".
2. When the asset is uploaded, a new asset sheet is automatically created.
3. Then follow the procedure for "The case of a asset already uploaded in the DAM" to link the asset to the product sheet.

👍

Tips

You can upload multiple assets at once. Each asset imported will result in the creation of a new specific asset sheet.
You can also import asset by simply dragging and dropping from your computer to the DAM window.

📘

Summary

• Methods for linking asset to product sheets: Images, videos, or other types of asset can be linked via: manual link from the product sheet or asset sheet, CSV file import, API, automatic link rule.
• Manual linking:
  • from the product sheet, go to the assets tab, search for and select an already present asset or import a new one.
  • from the asset sheet, click the link button, link to a product sheet by selecting the link, then search for the product.
• Adding new asset: Ability to upload asset not yet in the DAM during the linking process, either from the "assets tab" or by adding directly to the DAM.
• Tips:
  • Use a second tab to view product / asset names or codes to make identification easier.
  • You can drag and drop to import asset.

Next Chapter

Now that you know how to link asset to product sheets, let's see how to Enrich variant data.
